CRD Prime GI Channel
CRD PRIME - POP CEILING

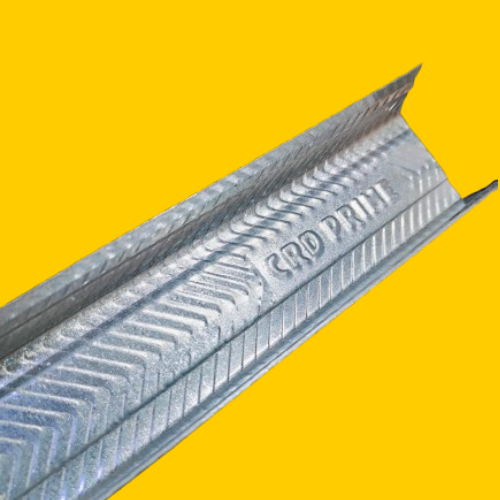

Main
The Main Supporting Section for Plasterboard Installation
This section provides robust support for plasterboard installations, ensuring stability and durability in construction.
Dimensions:
- Length: 2440 mm
- Width & Height: 40 mm x 15 mm x 40 mm
Weight Options: 9 kg to 20 kg
Gauge Thickness: 30 to 24 gauge
Designed for precision, it ensures reliable performance under various loads and conditions.

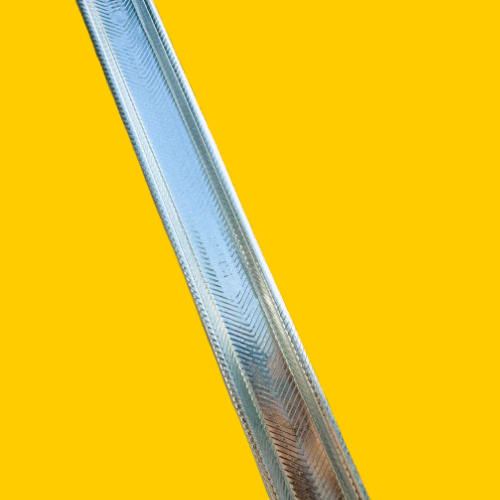

Cross
The Main Supporting Section to Fix Plasterboard
This section provides essential support for fixing plasterboard, ensuring stability during installation.
Dimensions:
- Length: 2440 mm
- Width & Height: 50 mm x 12 mm x 25 mm
Weight Options: 9 kg, 10 kg, 12 kg, 14 kg, 15 kg, 16 kg, 18 kg, 20 kg
Gauge Thickness: 30, 29, 28, 27, 26, 25, 24, 24 gauge
Designed for reliability, it ensures long-lasting performance during plasterboard installation.

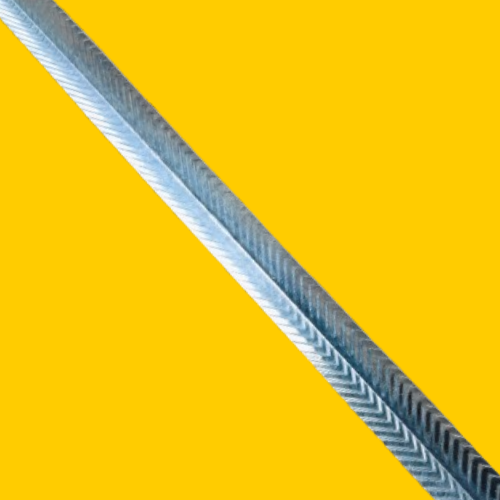

L Angle
The Angle Supporting Section to Fix Plasterboard
This section is designed to provide essential support for fixing plasterboard, ensuring stability during installation.
Dimensions:
- Length: 2440 mm
- Width & Height: 22 mm x 15 mm
Weight Options: 9 kg, 10 kg, 12 kg, 14 kg, 15 kg, 16 kg, 18 kg, 20 kg
Gauge Thickness: 30, 29, 28, 27, 26, 25, 24, 24 gauge
Designed for reliability, it ensures long-lasting performance during plasterboard installation.
CRD PRIME - GYPSUM BOARD CEILING
Ceiling Cection
The Supporting Section for Plasterboard Installation
This section provides essential support for plasterboard installation, ensuring stability and strength.
Dimensions:
- Length: 3660 mm
- Width & Height: 80 mm x 25 mm x 45 mm
Weight Options: 34 kg, 30 kg
Gauge Thickness: 27, 28 gauge
Designed for durability, it ensures reliable performance under various conditions.
Inter
The Primary Section to Support the Ceiling Section
This section provides essential support for the ceiling installation, ensuring stability and durability.
Dimensions:
- Length: 3660 mm
- Width & Height: 48 mm x 15 mm x 45 mm
Weight Options: 24 kg
Gauge Thickness: 24 gauge
Designed for reliability, it ensures long-lasting performance in ceiling applications.
Perimeter
The Section to Fix Around Walls/Partitions
This section is designed for fixing around walls and partitions, providing necessary support for plasterboard installation.
Dimensions:
- Length: 3660 mm
- Width & Height: 35 mm x 20 mm x 25 mm
Weight Options: 16 kg, 13 kg
Gauge Thickness: 27, 28 gauge
Designed for durability, it ensures reliable performance in wall and partition applications.
CRD PRIME - Partition
Stud
The Vertical Support Section for Wall Framing
This section is used as the vertical support in wall framing, ensuring stability and strength.
Dimensions:
- Length: 3660 mm
- Width & Height: 55 mm x 36 mm x 48 mm
Weight Options: 34 kg, 30 kg
Gauge Thickness: 26, 27 gauge
Designed for reliability, it provides long-lasting support in wall framing applications.
Floor
The Section Fixed to Floor and Ceiling for Securing CRD PRIME Wall Studs
This section is designed to be fixed to the floor and ceiling for securing CRD PRIME wall studs, ensuring stability and strength.
Dimensions:
- Length: 3660 mm
- Width & Height: 55 mm x 30 mm x 48 mm
Weight Options: 27 kg
Gauge Thickness: 26 gauge
Designed for durability, it ensures reliable performance in securing wall studs.

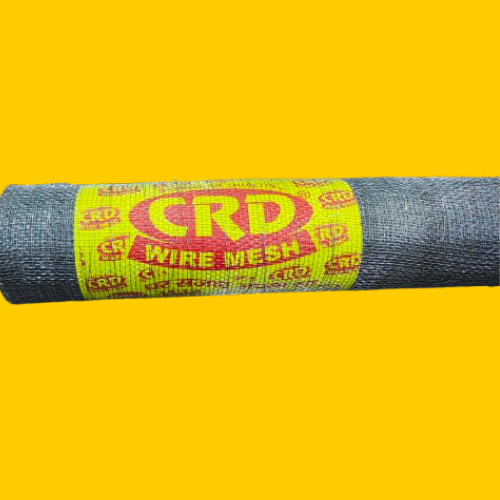

Wiremesh
Application
This section is designed for specific applications requiring the following specifications:
Weight Options: 50 ft, 100 ft
Gauge Thickness: 7.350, 14.5 gauge
Designed for durability, it ensures long-lasting performance under varying conditions.

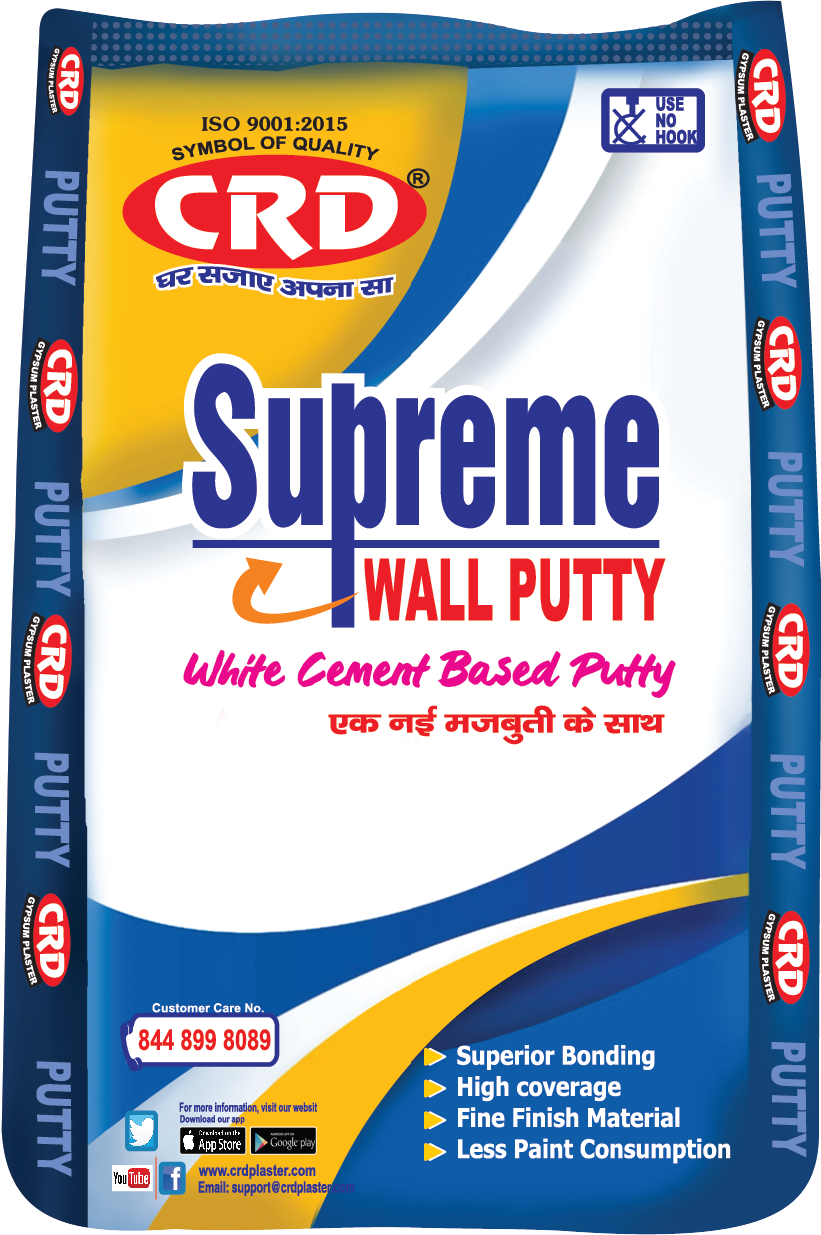

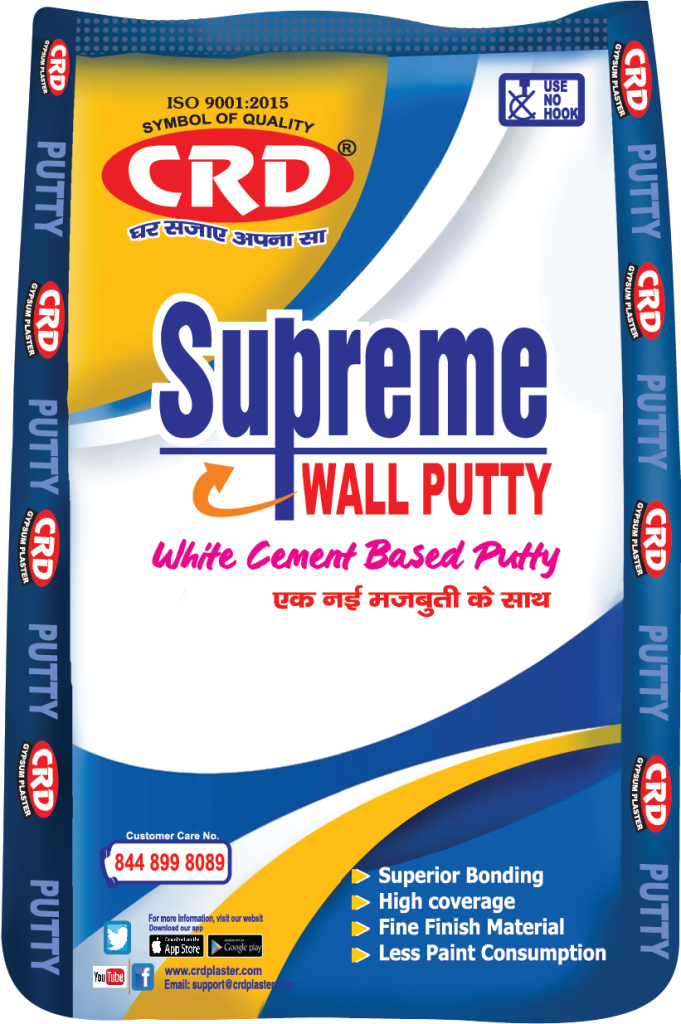

Supreme Wall Putty
Floor
Supreme Wall Putty
CRD Expert Plaster is a leading gypsum plaster known for its extra whiteness, expanded coverage, and durability. Scientifically developed with premium raw materials, it resists cracking and shrinking, ensuring long-lasting protection and minimal maintenance.
Key Specifications:
- Setting Time: 15-20 mins
- Residue: 2%-4%
- Whiteness: 75%-80%
- ISO Certified: Yes
- Wastage: NIL
- Transverse Strength: 18-22 kg/cm²
- Compressive Strength: 3-5 N/mm²
- Density: 700-750 kg/m³
- Chemical Composition: Calcium Sulphate Hemihydrate
- Water to Material Ratio: 1:1.25
- Coverage: 1.25 sq. ft. (12 mm thickness per kg)
- Shelf Life: 12 months
Floor

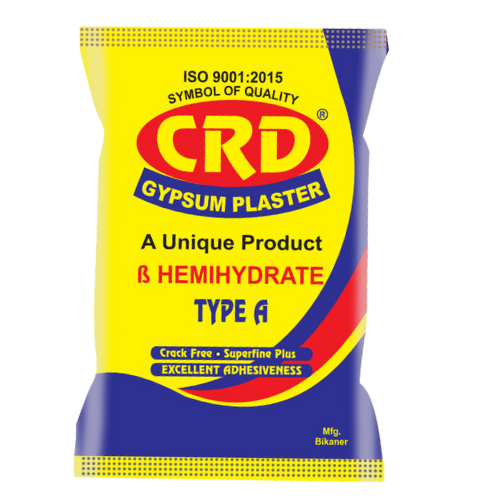

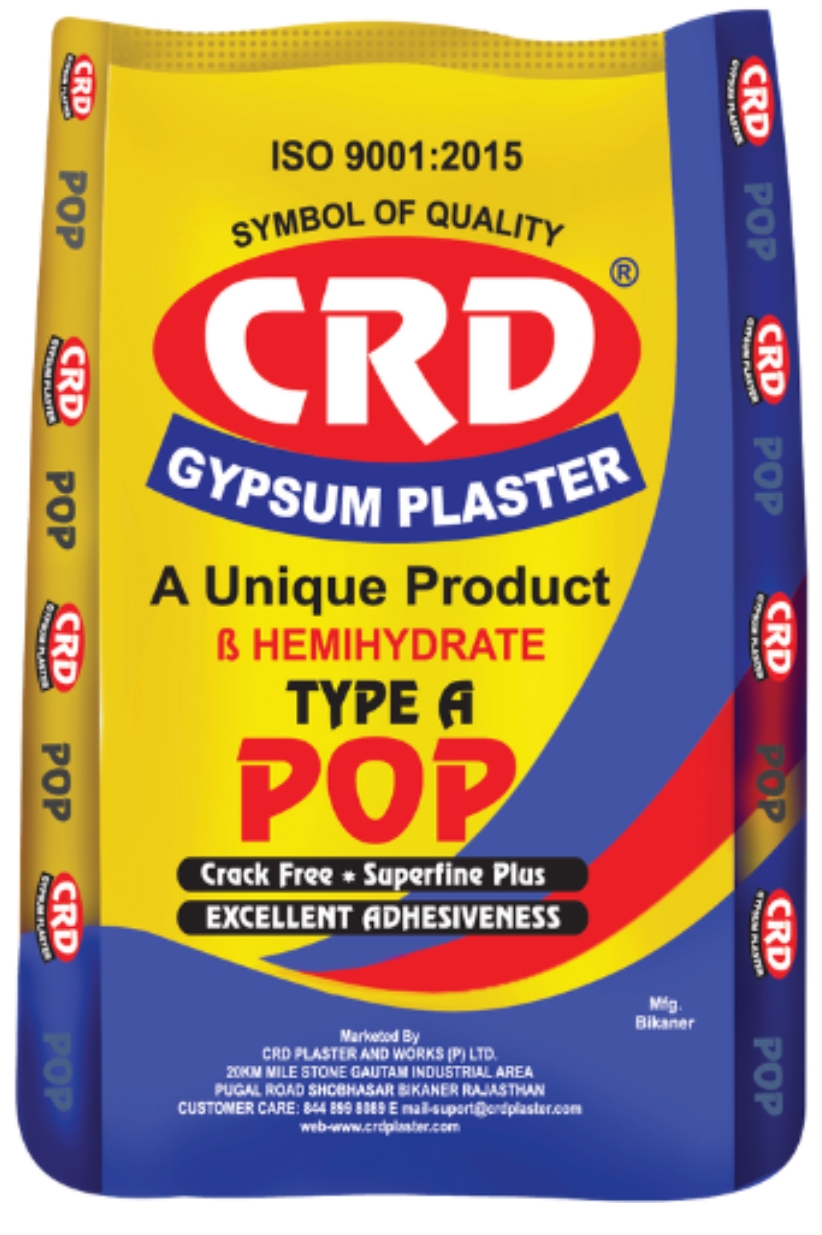

CRD Gypsum Plaster (POP) 2KG
CRD Expert Plaster is a premium gypsum plaster offering extra whiteness, expanded coverage, and long-lasting durability. Scientifically developed using high-quality raw materials, it resists cracking and shrinking. Its slow drying ensures lasting protection and minimal maintenance.
Specifications:
- Setting Time: 15-20 mins
- Residue: 2%-4%
- Whiteness: 75%-80%
- ISO Certified: Yes
- Wastage: NIL
- Transverse Strength: 18-22 kg/cm²
- Compressive Strength: 3-5 N/mm²
- Density: 700-750 kg/m³
- Chemical Composition: Calcium Sulphate Hemihydrate
- Water to Material Ratio: 1:1.25
- Coverage: 1.25 sq. ft. (12 mm thickness)
- Shelf Life: 12 months
Floor

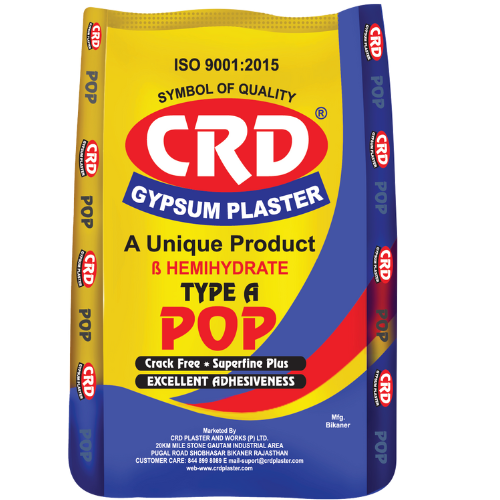

CRD Gypsum Plaster (POP) 25KG
CRD Expert Plaster is a premium gypsum plaster offering extra whiteness, expanded coverage, and long-lasting durability. Scientifically developed using high-quality raw materials, it resists cracking and shrinking. Its slow drying ensures lasting protection and minimal maintenance.
Specifications:
- Setting Time: 15-20 mins
- Residue: 2%-4%
- Whiteness: 75%-80%
- ISO Certified: Yes
- Wastage: NIL
- Transverse Strength: 18-22 kg/cm²
- Compressive Strength: 3-5 N/mm²
- Density: 700-750 kg/m³
- Chemical Composition: Calcium Sulphate Hemihydrate
- Water to Material Ratio: 1:1.25
- Coverage: 1.25 sq. ft. (12 mm thickness)
- Shelf Life: 12 months
Floor

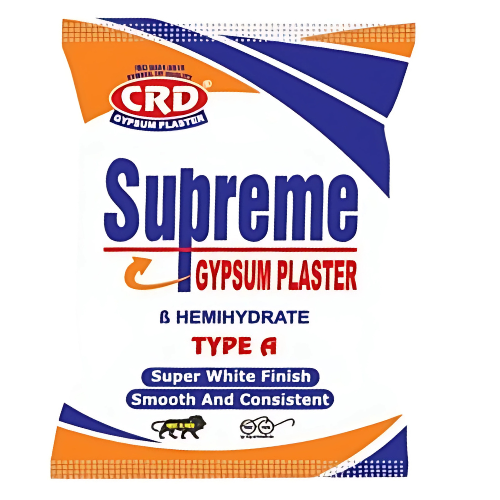

Supreme Gypsum Plaster (POP) 20KG
CRD Expert Plaster is a top gypsum plaster offering extra whiteness, expanded coverage, and long-lasting durability. Developed using premium gypsum and advanced research, it resists cracking, shrinking, and ensures minimal maintenance.
Key Details:
- Setting Time: 15-20 mins
- Residue: 2%-4%
- Whiteness: 75%-80%
- ISO Certified: Yes
- Wastage: NIL
- Transverse Strength: 18-22 kg/cm²
- Compressive Strength: 3-5 N/mm²
- Density: 700-750 kg/m³
- Composition: Calcium Sulphate Hemihydrate
- Water Ratio: 1:1.25
- Coverage: 1.25 sq. ft. (12 mm thickness per kg)
- Shelf Life: 12 months
Floor
Supreme Gypsum Plaster (POP) 25KG
CRD Expert Plaster, a top-selling gypsum plaster, offers extra whiteness, expanded coverage, and long-lasting durability. Made with premium gypsum and advanced research, it resists cracking and shrinking, ensuring minimal maintenance.
Specifications:
- Setting Time: 15-20 mins
- Residue: 2%-4%
- Whiteness: 75%-80%
- ISO Certified: Yes
- Wastage: NIL
- Transverse Strength: 18-22 kg/cm²
- Compressive Strength: 3-5 N/mm²
- Density: 700-750 kg/m³
- Composition: Calcium Sulphate Hemihydrate
- Water Ratio: 1:1.25
- Coverage: 1.25 sq. ft./kg (12 mm thickness)
- Shelf Life: 12 months
